Description

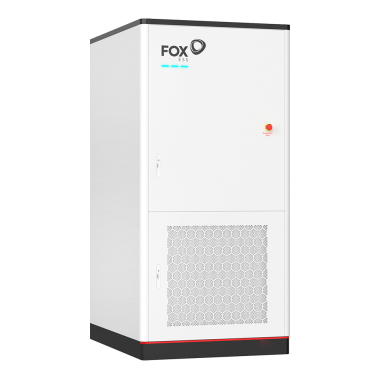

The Fox ESS G-MAX is a turnkey commercial energy storage system delivering 100kW of rated output and 215kWh of lithium iron phosphate battery capacity — all pre-integrated into a single outdoor-rated container. Built for peak shaving, load management, and grid services, it enables smarter site-level energy use while reducing infrastructure cost and complexity.
Why Choose This Product?
- All-in-one container: Includes battery, PCS, BMS, switchgear, and control in a single deployable unit
- Intelligent operation modes: Supports peak shaving, load shedding, PV energy balancing, and frequency regulation
- Efficient performance: 89%+ round-trip efficiency, with 0–100% usable depth of discharge
- Modular and expandable: Supports parallel configuration for system scaling
- Smart cooling and safety: Liquid-cooled with integrated temperature control and aerosol fire suppression
- Remote access and monitoring: Connects to Fox ESS Cloud via Wi-Fi, 4G, or 5G
- Standards ready: Compliant with G99, EN50549, CEI-021 and more
Performance and Integration
Designed for industrial-grade performance, the G-MAX system runs on high-capacity 280Ah LFP cells and operates from 672V to 876V. It delivers 100kW continuous power with up to 110kW peak for short bursts. The system is engineered for full lifecycle endurance with over 8,000 cycles at 70% end-of-life. Onboard management includes predictive alarms, energy routing logic, and active cooling — all controlled by an intelligent BMS.
Installation and Connectivity
Preconfigured at the factory, the G-MAX ships ready to deploy. All major components — from internal wiring to the control system — are installed and tested before delivery. Onsite setup is plug-and-play, with simple external connections and automatic detection of expansion units. Ethernet is standard, with wireless options (Wi-Fi, 4G, or 5G) and full integration into the Fox ESS Cloud platform for live data access and system alerts.
Who is it for?
- Commercial sites: Warehouses, depots, factories, and distribution centres
- Developers: Grid-connected or microgrid projects requiring fast deployment
- Installers: Projects needing modular, expandable storage with minimal onsite assembly
Technical Specifications
| Model | GM215kWh-100kW-2h |
|---|---|
| Battery Type | LiFePO₄ (3.2V / 280Ah cells) |
| System Capacity | 215kWh |
| Rated Output Power | 100kW |
| Peak Output Power | 110kW |
| Operating Voltage Range | 672 – 876V |
| Nominal Voltage | 380/400V, 3L/N/PE |
| Frequency | 50/60Hz |
| THDi | <3% |
| Power Factor | >0.99 (adjustable –1 to +1) |
| Round-Trip Efficiency | >89% |
| Cycle Life | ≥8000 cycles @ 70% EOL |
| Depth of Discharge | 0–100% |
| Cooling | Liquid cooling |
| Ingress Protection | Battery: IP67 / Enclosure: IP54 |
| Noise Level | <75dB @ 1m |
| Operating Temp Range | –25°C to +55°C |
| Humidity Range | 0 – 95% (non-condensing) |
| Altitude | ≤3000m |
| Dimensions (W×D×H) | 1040 × 1500 × 2200 mm |
| Weight | <2500kg |
| Fire Protection | Aerosol-based system |
| Communication Interfaces | Ethernet, Wi-Fi, 4G, 5G |
| Certifications | CEI-021, EN50549-1/2, IEC 62619, UN38.3 |
Preconfigured for expansion and parallel operation. All-in-one delivery with site-ready installation profile.
