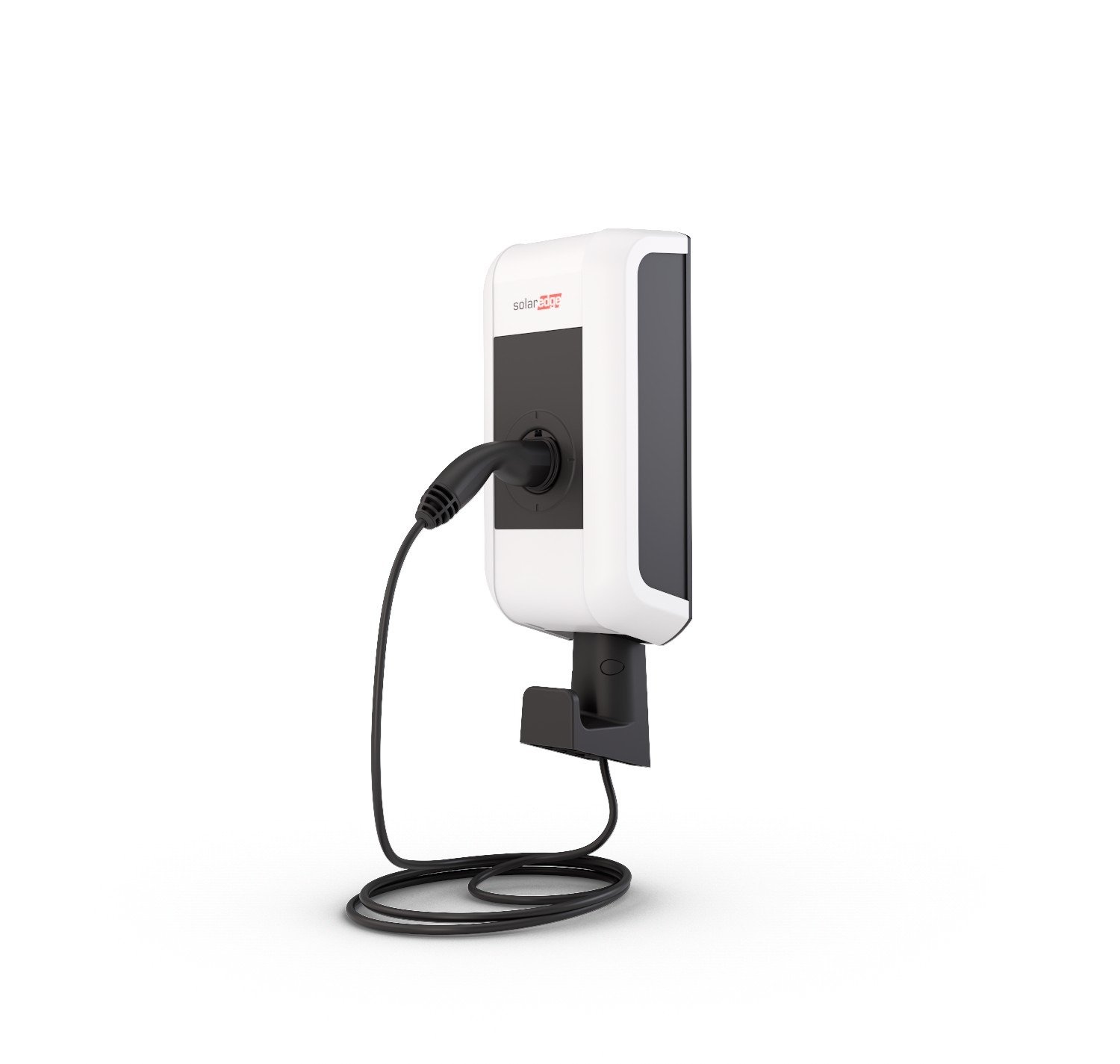

SolarEdge EV Charger — Drive on Sunshine, Save on Costs
The SolarEdge EV Charger is a fully integrated smart charging solution designed to work seamlessly with your SolarEdge Home energy ecosystem. By using surplus solar energy to charge your electric vehicle, this charger maximises self-consumption, reduces your electricity costs, and supports a greener lifestyle. Whether installed in your driveway or garage, it offers fast, reliable charging and advanced app-based control to match your schedule and energy goals.
Clean, convenient, and cost-effective charging
Charging your EV at home can significantly increase your electricity bills. With the SolarEdge EV Charger, you can power your vehicle using 100% renewable energy from your SolarEdge PV system. This means lower bills, protection from rising energy rates, and full use of your solar investment. You can also set smart schedules to charge when grid tariffs are lowest, or at night using battery storage.
Flexible installation options
The SolarEdge EV Charger supports both single-phase (up to 7.4 kW) and three-phase (up to 22 kW) installations, making it suitable for all home and light commercial settings. The unit can be wall-mounted indoors or outdoors, and thanks to robust protection features (IP54 and IK10), it’s designed to withstand demanding environments.
Integrated with the SolarEdge ecosystem
When integrated with the SolarEdge Home ecosystem, your EV charger can participate in load balancing, helping to protect your home’s main circuit breaker and optimise total energy use. You can also monitor and control your charger remotely via the mySolarEdge app, which supports custom scheduling, live status updates, and charging history tracking. For added security, certain models offer RFID authentication and MID metering for detailed session reports — perfect for expense reimbursement or fleet management.
Smart features for maximum control
- Dynamic smart scheduling: Charge when solar is abundant or grid rates are low.
- OCPP communication: Generate reports for billing or reimbursements.
- Tamper protection: Alerts you to attempted interference.
- Supports multiple chargers: Connect up to three SolarEdge EV Chargers per site.
What’s in the box?
Each SolarEdge EV Charger package includes the charger unit (tethered 6 m Type 2 cable or socket option), mounting hardware, detailed installation manual, and connection accessories. The design ensures a clean and easy installation with minimal disruption.
Reliable and safe
G100 Issue 2 Amendment 2 compliance ensures the charger meets UK export limitation standards and offers tamper detection for added peace of mind. It’s designed to operate safely in a wide temperature range and comes with robust surge and impact protection as standard.
Technical Specifications
| Max Output Power | Up to 7.4 kW (single-phase), up to 22 kW (three-phase) |
| Rated Current | 10 / 13 / 16 / 20 / 25 / 32 A (configurable) |
| Voltage | 230 V (single-phase), 3 x 230 / 400 V (three-phase) |
| Cable Type | Type 2, 6 m tethered cable or socket option |
| Protection Class | IP54 (weather resistant), IK10 (impact resistant) |
| Operating Temperature | -25°C to +50°C @ 16 A, -25°C to +40°C @ 32 A |
| Connectivity | WiFi, Ethernet, OCPP-ready, RFID (three-phase model only) |
| Smart Control | mySolarEdge app for remote control, scheduling, monitoring |
| Supported Installations | Single and three-phase, indoor and outdoor |
| Dimensions | 643 / 495 x 240 x 142 mm (depending on model) |
| Weight | 7.8 kg (cable), 5 kg (socket) |
| Warranty | 3 years |
